M1074 Hemtt Pls With M1076 Trailer
I Love Kit 63564

Basic Information

• Finished Model Length: 563.7 mm
• Width: 103.5 mm
• Number of Parts: Over 1000
• Number of Sprouts: 26 and a set of tires
• Photo-etched Parts: 4 Plates
• Metal Parts: Brass Wire

Kit Highlights

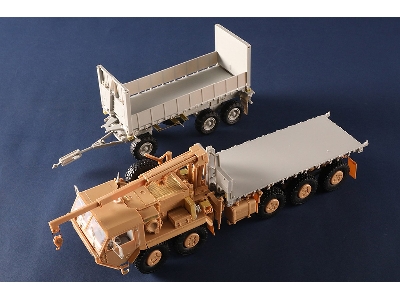

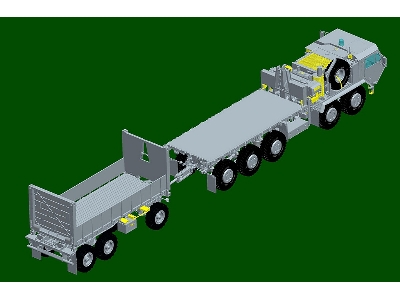

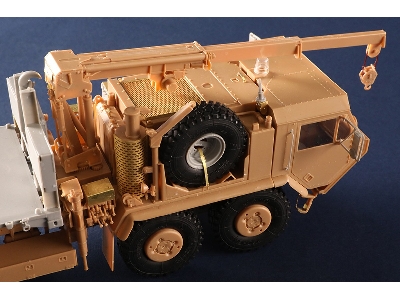

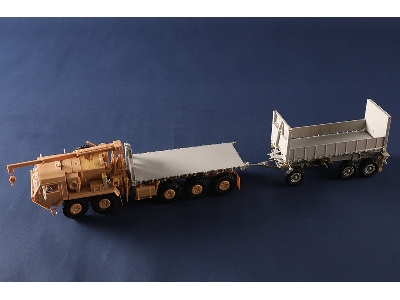

• Detailed M1074 HEMTT PLS Transport Tractor with M1076 Trailer.
• Cabin made using slide mold technology.

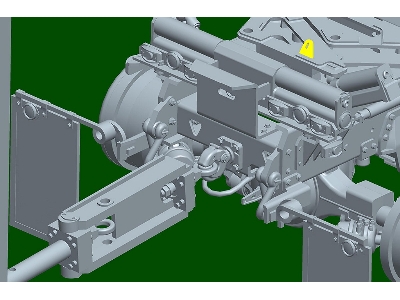

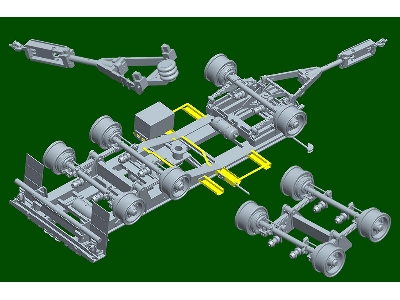

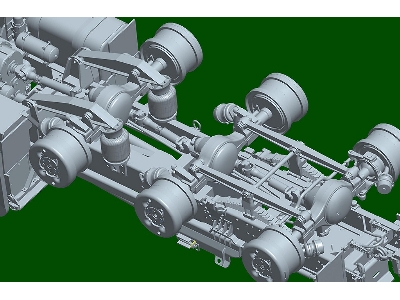

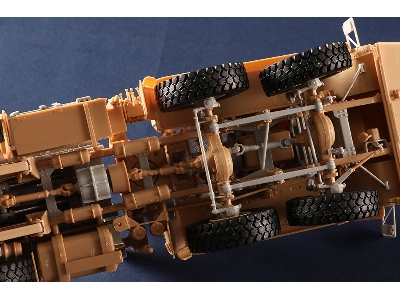

• Complete chassis with engine, gearbox, drivetrain, axles, and suspension.

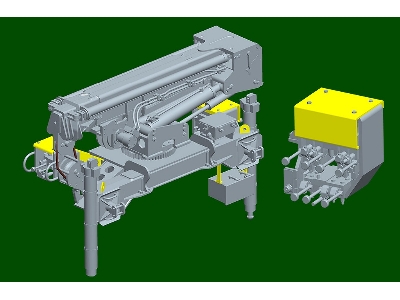

• Realistically reproduced PLS platform loading and transport system.

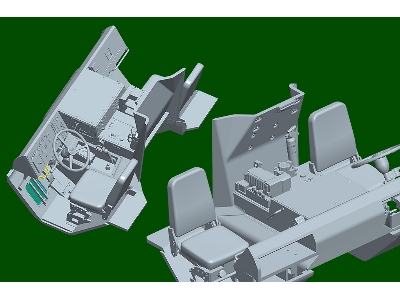

• Detailed interior of the driver's cab.

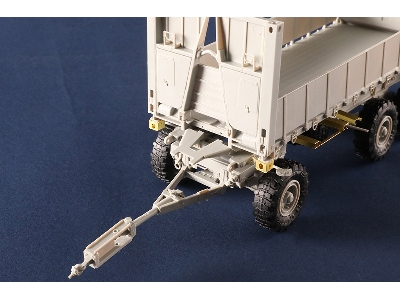

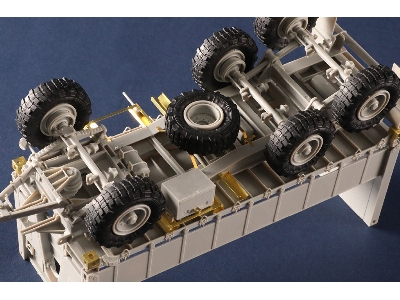

• Faithfully reproduced M1076 trailer chassis.

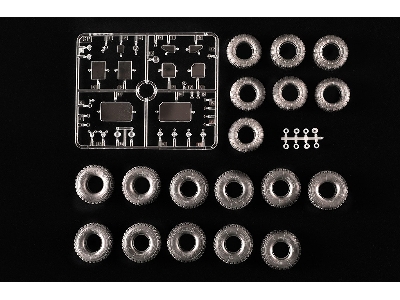

• Rubber tires with distinct tread.
• Transparent window elements.

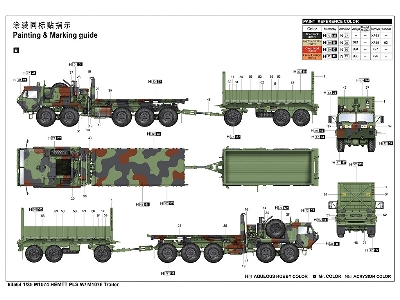

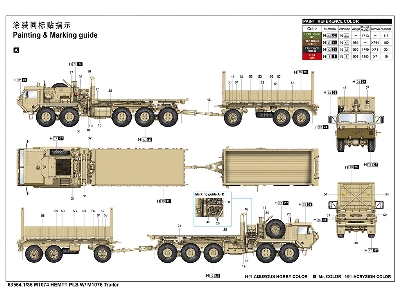

• Two painting and marking options.

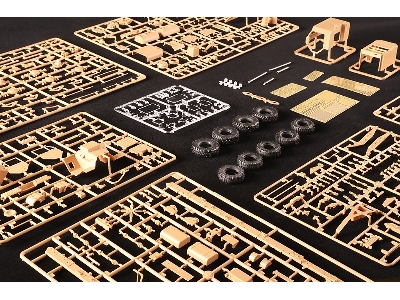

Kit Contents

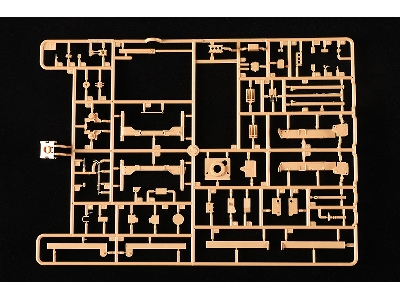

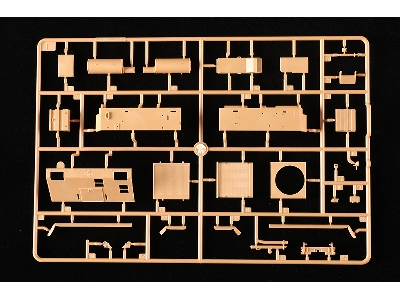

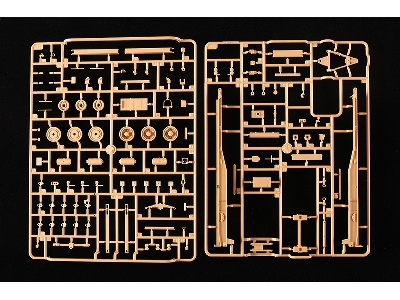

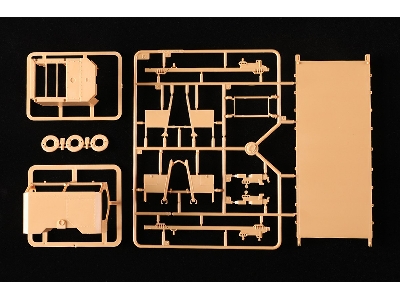

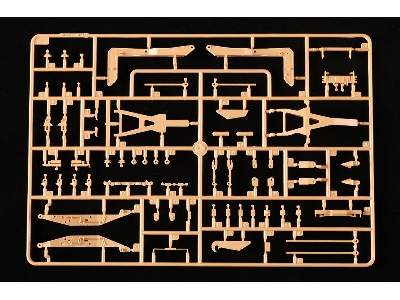

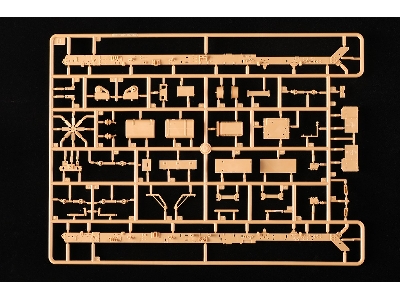

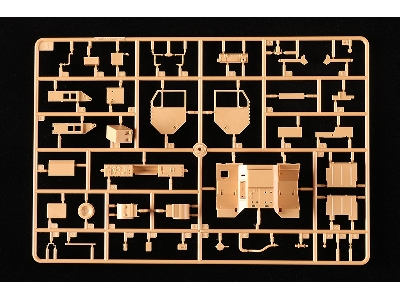

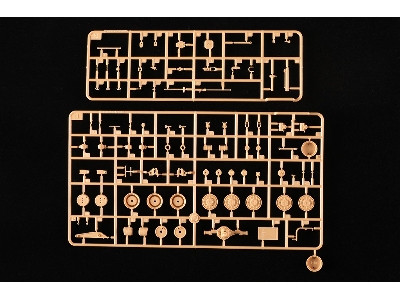

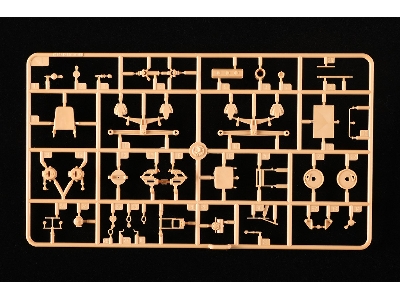

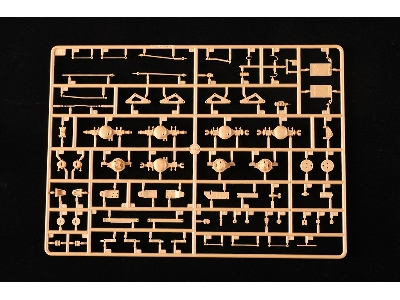

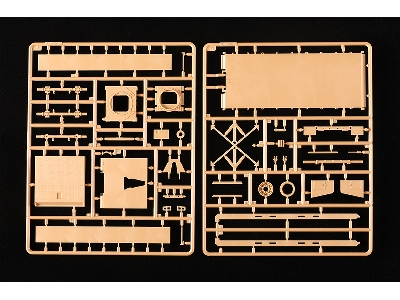

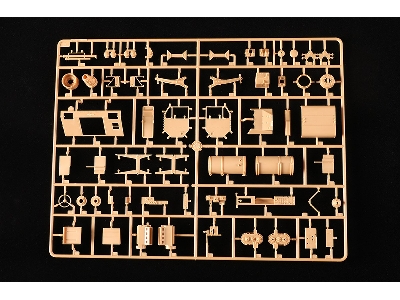

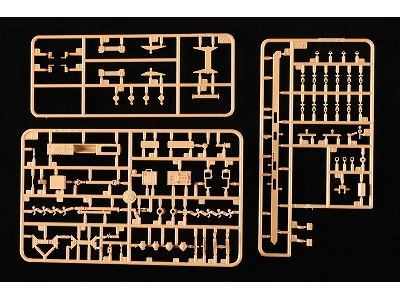

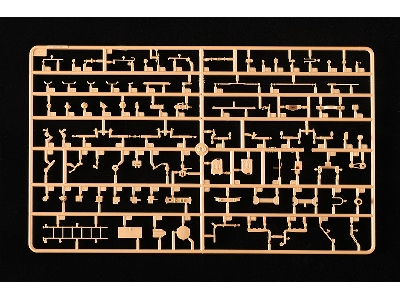

• 26 sprues with model elements.
• A set of rubber tires.

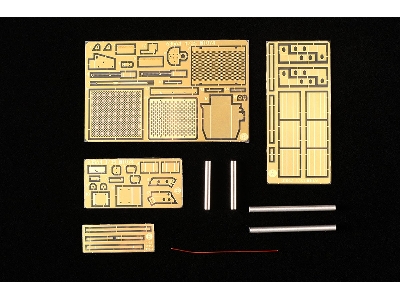

• 4 photo-etched parts.
• Brass wire for selected details.

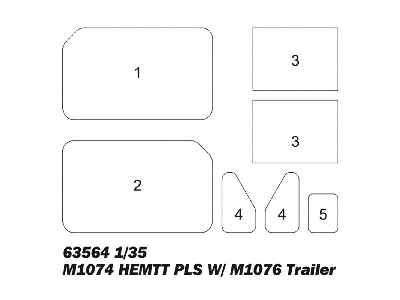

• Transparent elements.
• Decal sheet.
• Instructions assembly.

The kit does not include glue or paints.

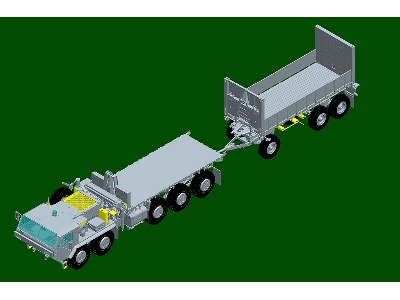

M1074 HEMTT PLS with M1076 Trailer

The M1074 belongs to the HEMTT (Heavy Expanded Mobility Tactical Truck) family of heavy military vehicles, developed for the United States Army to transport heavy loads over difficult terrain. The PLS (Palletized Load System) version is equipped with a hydraulic loading and unloading system for the transport platforms, enabling independent load handling without the use of additional equipment.

The kit shows the vehicle with the M1076 trailer, which significantly increases the transport capacity of the entire system. This type of configuration is used to transport containers, logistics platforms, engineering materials, ammunition, and other military cargo requiring rapid loading and unloading.

HEMTT family vehicles have been operated by the United States Armed Forces since the late 1980s and have participated in numerous military operations around the world, where they are valued for their high mobility, high payload capacity, and reliability in difficult terrain.

Technical Data

• Crew: 2 people
• Drive: Detroit Diesel 8V92TA V8 diesel engine
• Engine power: 445 hp (332 kW)
• Drivetrain: 8×8
• PLS system payload: approx. 16.5 t
• Maximum speed: approx. 100 km/h

Building Tips

• It's best to start construction with the complete assembly of the frame and drivetrain, checking the chassis geometry.
• Before mounting the axles, it's worth checking the alignment of all wheels on a flat surface.
• Photo-etched parts are best installed after a dry fit.
• It's best to protect the clear window parts from scratching until the final stage of construction.
• Painting the frame, suspension, and drivetrain components before final assembly makes detailing easier.

Frequently Asked Questions

Does the kit include a trailer?

Yes. The model includes both the M1074 HEMTT PLS tractor and the M1076 transport trailer.

Are photo-etched parts included?

Yes. The manufacturer has included four photo-etched parts and brass wire for selected details.

Does the model have a detailed chassis?

Yes. The kit includes a complete drivetrain with engine, gearbox, axles, and suspension.

Does the model require glue and paints?

Yes. Glue and paints must be purchased separately.
